Tea Leaf Doypack Packing Machine
This is full automatic premade stand pouch doypack packing machine, it can be used to pack tea leaf, herbal flower tea, nuts, biscuits, candy, sugar etc in premade pouch automatically. The packing line contains doypack packing machine, multi heads weigher, platform, Z shape elevator, finish product conveyor and etc.
Introduction
Packaging Solution:
We suggest the Packaging Line include
- One set of HP210 Horizontal packing machine
- One set of 10-head weigher
- One set of piston pump filler
- One set of Z type bucket conveyor
- One set of operation platform
- One set of finish product conveyor
1. HP210 premade bag packing machine
Advantage: horizontal packing machine, guarantee good sealing strength and perfect packing appearance.

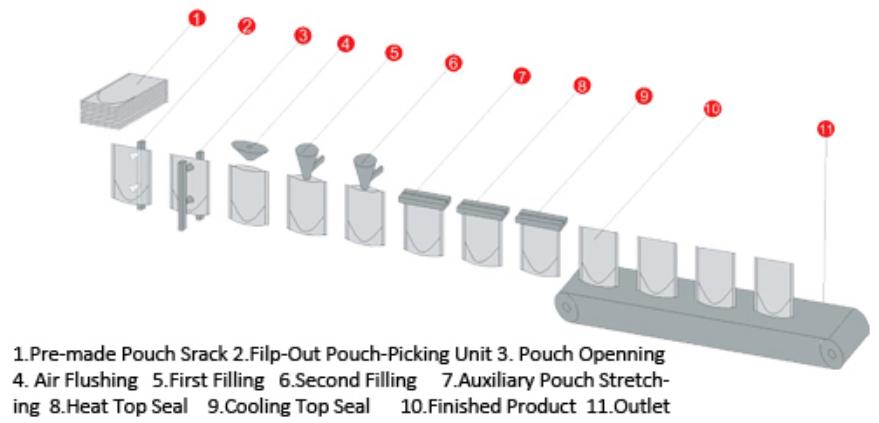

2. Main machine Configuration
- One Set of Pouch Magazines
- One Set of Pouch Picking System
- One Set of Bottom Opening Devices
- One set of Pouch Opening System
- Duplex Filling Station
- One Set of Pouch Stretching Device
- Two Sets of Top Sealer
- One Set of Walking Beam System
- A LCD touch-control operation system
- A PLC control system
- An operation manual in English
3. Technical Parameter:
- Pouch Width 90mm-210mm
- Pouch Height 110mm-300mm
- Max Volume 1200ml
- Speed 35-60 ppm
- Packaging Film: Laminated film
- Accuracy <±1.5% (actual accuracy depend on actual material)
- Reel film 500mm
- Electricity Consumption 4.5KW
- Air Consumption 350NL/min
- Approx Weight 1100KG
- Approx Size (L×W×H) 3200mm×980mm×1400mm
