Tea Bag Packing Machine DXDC8I

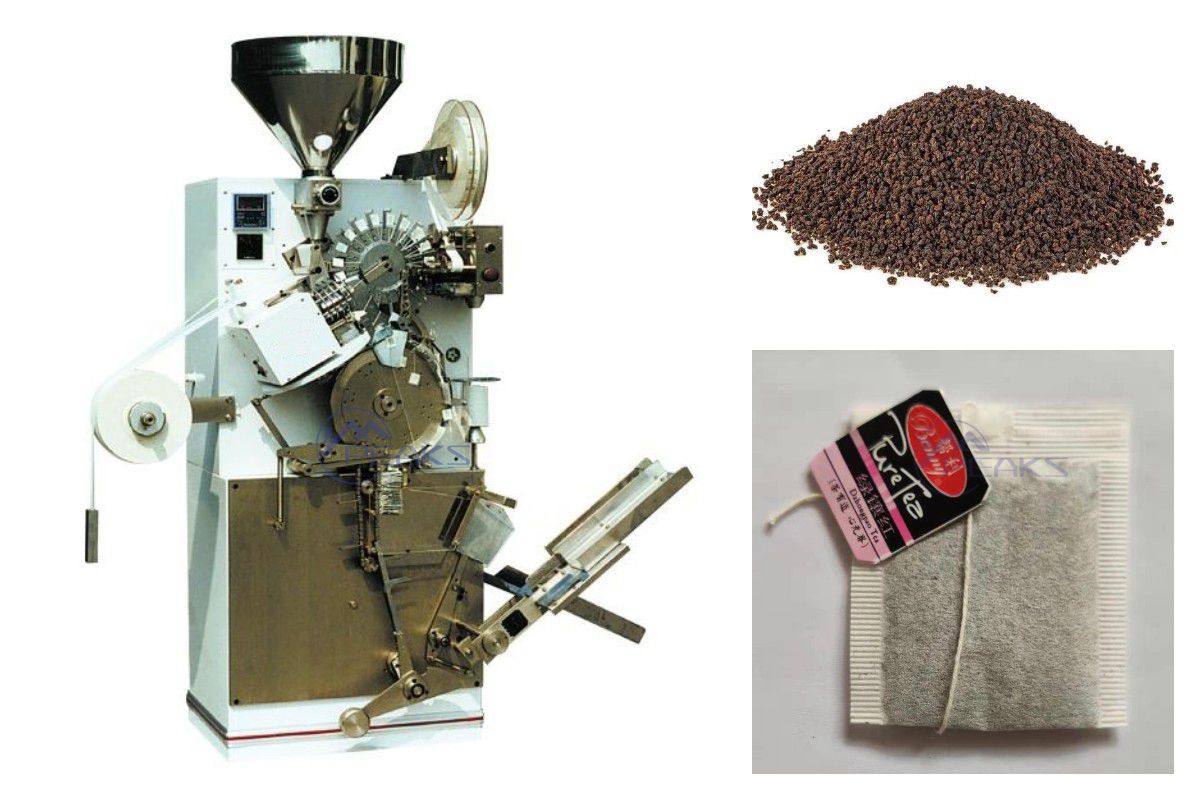

DXDC8I automatic tea bag machine is suitable for packing of tea and herbs into the heat-sealed single chamber tea bags with thread and tag, all the work of weighing, bag forming, filling, sealing, cutting, counting, boxing can be finished automatically and high speed. The speed up to 120bags/min.
Introduction
1. Descriptions:
DXDC8I automatic tea bag machine is suitable for packing of tea and other similar herbs into the heat-sealed single chamber tea bags with thread and tag, all the work of weighing, bag forming, filling, sealing, cutting can be finished automatically and high speed. And the teabags can be packed into box after counting.
2. Packing Material:

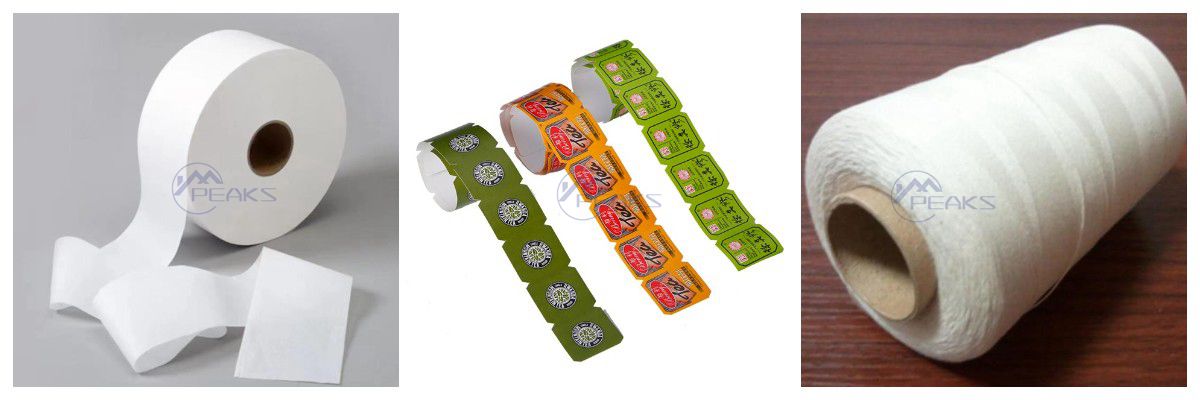

The packing materials are filter paper, thread and tag paper.
3. Features:
– High speed, up to 120bags/min.
– The complete machine is controlled and coordinated by PLC.
– It is simple to set and control the temperature of all heating parts.
– With failure alarm and emergency buttons.
– It has the counting function of batch quantity, also boxing device.
– It is ideal machine and able to replace Maisa machine.
3. Parameter list:
| Output: | 120bags/minute |
| Max. dosage | 8cm³ |
| Bag dimensions | 62.5 x 50 mm |
| Tag dimensions | 28 x 24 mm |
| Thread length | 210mm |
| Packing in boxes: | 25,50,100 / 30,60 / 20,40 |
| Power supply | 380V, 3Phase, 1.25kw |
| Weight | 540kg |
| Gross Weight | 720kg |
| Overall dimensions | 1.7 x 0.9 x 2 m |
| Packing box dimensions | 1.236×1×1.855 m |
