Drip Coffee Pouch Packing Machine with Nitrogen Creating System
DC50I is new generation drip coffee pouch packing machine, servo motor driving reciprocating type for outer envelop, it makes perfect and neat coffee bags, speed 40-50bags/min. It can connect with Nitrogen generator, and guarantee 95%-99% Nitrogen content in the coffee bag.
Introduction
1. Introduction:
DC50I is new generation drip coffee bag packing machine, it packs ground coffee powder in drip coffee pouch with paper hanger and outer envelop full automatically. The haning ear coffee packing machine adopt screw auger feeding, inner drip coffee bag making, coffee powder filling, ultrasound sealing and cutting, outer envelop making and date coding full automatically. This machine can connect with vacuum conveying machine and Nitrogen gas generating system.
2. Features:
The is our newly upgraded model drip coffee bag packing machine.
– double ultrasound sealing for inner drop coffee bag with paper hanger.
– servo motor drive for outer envelop, makes very neat and high-end appearance coffee bag.
– machine with capacity 40-50bags/min.
– work with vacuum conveyor, save labor cost.
– work with Nitrogen generator, to fill Nitrogen and get longer shelf life.
– the machine finish high accuracy screw auger weighing, filling, ultrasonic inner bag sealing, cutting, outer bag forming, date coding full automatically.
3. Packing Material:

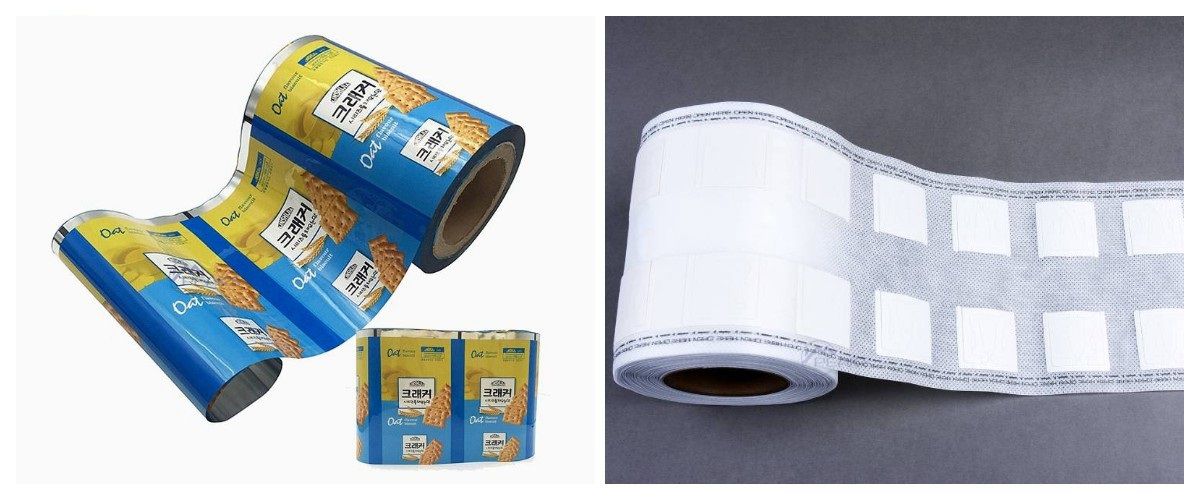

Inner coffee bag with drip bag coffee material in roll, and outer envelop material is composite material like plastic/plastic,plastic/aluminum/plastic etc.
4. Parameter list:
| Model | DC50I |
| Sealing method | Ultrasound sealing for inner bag, heat sealing for outer bag |
| Outer bag seal type | Three side sealing |
| Feeding device | Screw feeder + mixer |
| Hopper volume | Approx 5kg, need manually feed coffee powder |
| Controlling system | PLC control, with touch screen in English language |
| Outer film pulling | Servo motor driving, accurate movement, and makes better appearance coffee bag. |
| Filling range | 8-18gram/bag (can be customized) |
| Inner film width | 180 mm (74*90mm) |
| Outer film width | 200 mm (final bag 100mm*120mm) |
| Other Bag Size | Can be customized |
| Capacity | 40-50 bag/min (determined by coffee materials and film) |
| Power | 220V/single phase/50HZ/3.7kw |
| Air Consumption | 0.8MPa, 0.3M3/minute |
| Nitrogen Generator | Optional |
| Dimension | 1348*830*2640mm(contains vacuum conveyor) |
| Weight | Approx 650kg |
