Upgrade Drip Coffee Packing Machine
DC50II is our upgraded drip coffee bag packing machine, it adopt servo driving reciprocating type for outer bag, and makes perfect and neat coffee bags, speed 40-50bags/min. It can connect with Nitrogen generator, and guarantee 95%-99% Nitrogen content in the coffee bag.
Introduction
1. Introduction:
DC50II is our upgraded drip coffee bag packing machine, it packs ground coffee powder in single serve coffee pouch with paper hanger and outer envelop full automatically. The machine adopt screw auger feeding, inner drip coffee bag making, coffee powder filling, ultrasonic sealing and cutting, outer bag making, date coding full automatically, you can choose to add vacuum feeding machine and Nitrogen gas generator device.
The coffee bag materials is food grade nonwoven drip coffee roll material, which is pre tagged with paper hanger, after filling, forming and sealing, the drip coffee bag can be placed on the cup for brewing, the outer bag is composite heat sealable material, Nitrogen gas will keep the fresh smell of coffee and longer the shelf life.
The coffee package is so convenient, people able to make pour over coffee pouch in several minutes, you can drink a cup of coffee at home, in office, in hotel, or even on the way of your travelling.
2. Features:
The is our newly upgraded model drip coffee bag packing machine.
– double ultrasound sealing for inner drop coffee bag with paper hanger.
– servo motor drive for outer envelop, makes very neat and high-end appearance coffee bag.
– machine with capacity 40-50bags/min.
– work with vacuum conveyor, save labor cost.
– work with Nitrogen generator, to fill Nitrogen and get longer shelf life.
– the machine finish high accuracy screw auger weighing, filling, ultrasonic inner bag sealing, cutting, outer bag forming, date coding full automatically.
3. Packing Material:

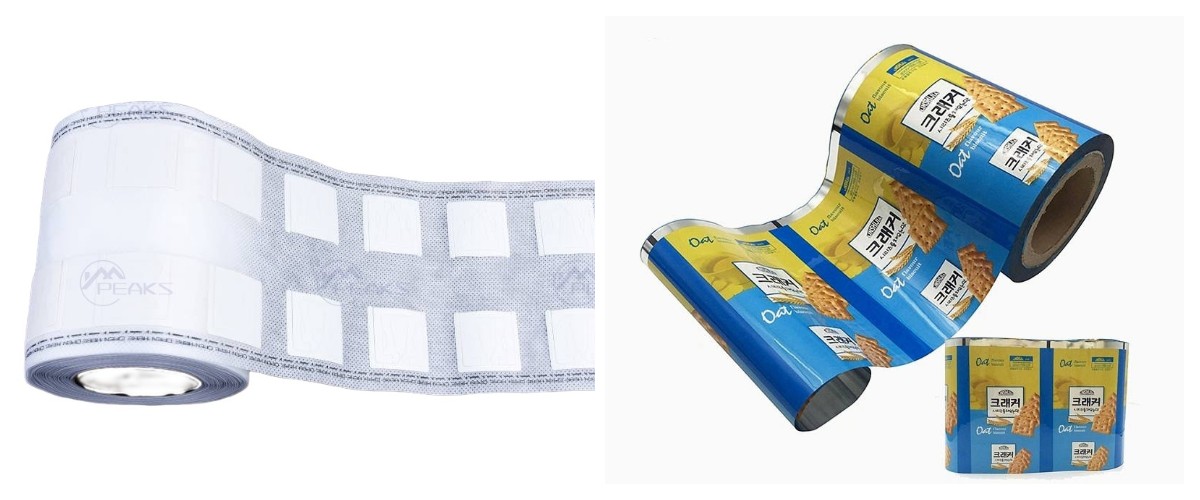

Inner coffee bag material using dripping bag coffee material in roll, and outer envelop material is composite material like plastic/plastic,plastic/aluminum/plastic etc.
4. Parameter list:
| Model | DC50II pour over coffee pouch making machine |
| Sealing method | Ultrasonic sealing for inner bag, heat sealing for outer bag |
| Outer bag seal type | Three side sealing |
| Feeding device | Screw auger feeder + mixer |
| Hopper volume | Approx 5kg |
| Controlling system | PLC control, with touch screen in English language |
| Outer film pulling | Servo motor driving, accurate movement, and makes better appearance coffee bag. |
| Filling range | 8-18gram/bag (can be customized) |
| Inner film width | 180 mm (74*90mm) |
| Outer film width | 200 mm (final bag 100mm*120mm) |
| Other Bag Size | Can be customized |
| Capacity | 40-50 bag/min (determined by coffee feature, filling weight and film width) |
| Power | 220V/single phase/50HZ/3.7kw |
| Air Consumption | 0.8MPa, 0.3M3/minute |
| Nitrogen Generator | Optional |
| Dimension | 1348*830*2640mm(contains vacuum conveyor) |
| Weight | Approx 650kg |
