Triangle Pyramid Tea Bag Packing Machine
T60 triangle pyramid tea bag packing machine is a new type of ultrasound sealing packing machine, it is multi-function and able to pack different tea or herbs into pyramid or rectangular shape tea bags with cotton string and tag automatically. The machine adopt multi heads electric scale weighing, high accuracy and good speed, also it can connect with outer envelop packing machine, avoiding hands directly contacting with stuff materials, improving the efficiency.
Introduction
1. Descriptions:
T60 triangle pyramid tea bag packing machine is a new type of ultrasound sealing packing machine, it is multi-function and able to pack different tea or herbs into pyramid or rectangular shape tea bags with cotton string and tag automatically. The machine adopt multi heads electric scale weighing, high accuracy and good speed, also it can connect with outer envelop packing machine, avoiding hands directly contacting with stuff materials, improving the efficiency.
2. Packing Material:

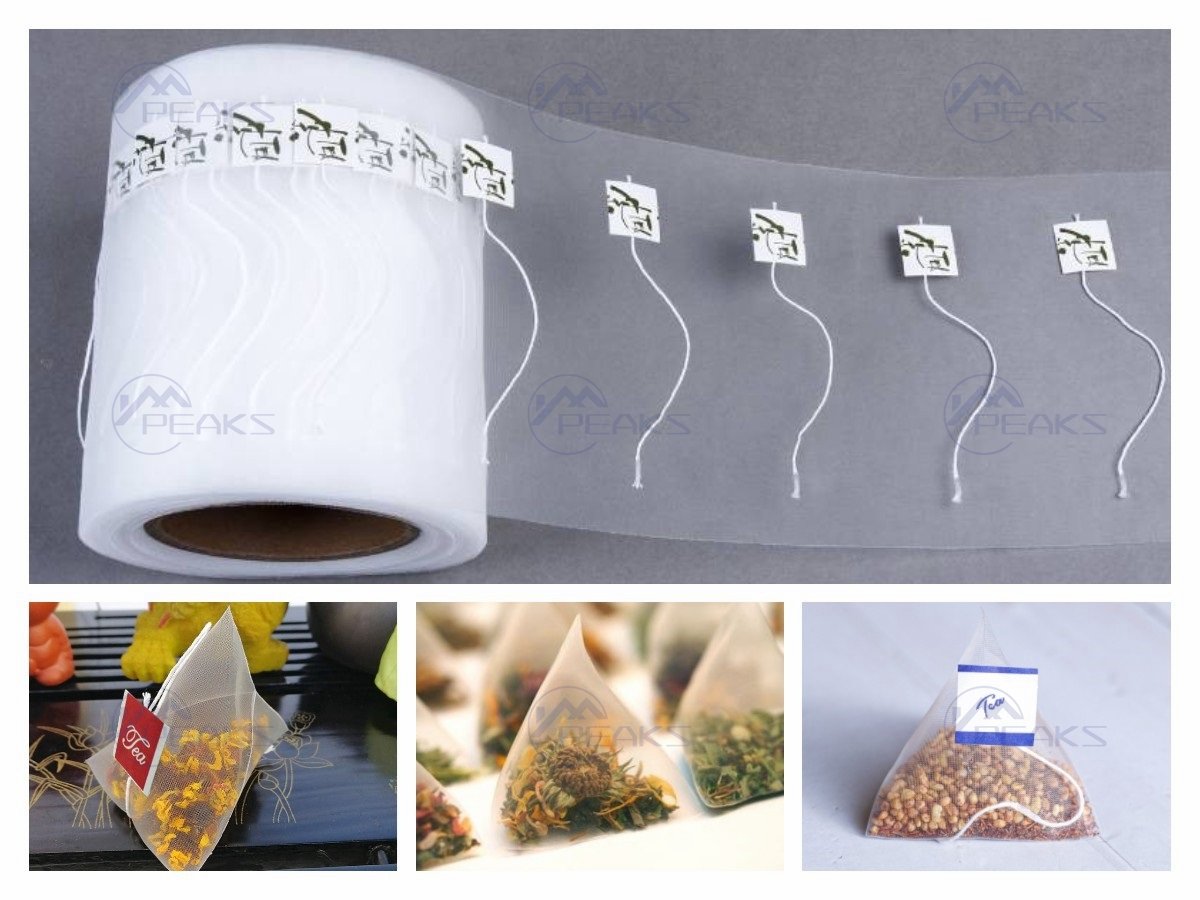

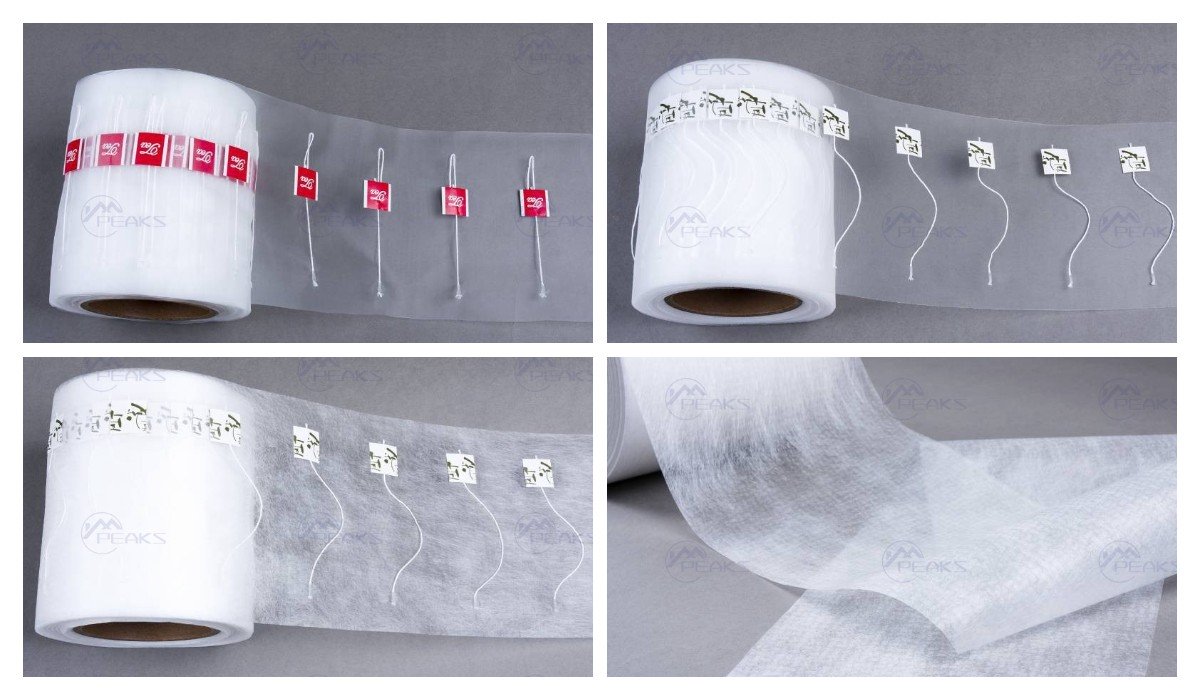

Inner material: Nylon mesh, PET mesh, or biodegradable PLA material film with thread and tag.
Outer material: heat sealable composite material, like PET/PE, PET/AL/PE etc.
3. Parameter list:
| Model | T60 Pyramid Tea Bag Packing Machine |
| Filling accuracy | ±2% (affected by product features also） |
| Sealing method | Ultrasound sealing for inner bag, heat sealing for outer package |
| Inner tea bag size | 60-80mm(W) * 40*80mm(L) |
| Packing film width | 140mm most common, 120mm and 160mm optional |
| Shape of envelop bag | 3 sealed bag |
| Outer tea bag size | Can be customized |
| Inner bag shape | Triangle shape or rectangular flat shape, can change from screen |
| Filling weight | 2-10ml |
| Speed | 30-70bags/min depends on tea feature and filling weight |
| Air consumption | 0.6Mpa, 0.4M3/min |
| Power | 220V, 50/60Hz, 3Kw (for inner and outer bag machine) |
| Package detail | Packed in export wooden case |
| Machine weight | Approx 750kg total |
We supply triangle teabag packaging machine in batch, and we have big stock machinery, so you can get machine from us in the shortest time.
