Introduction
1. Introduction:

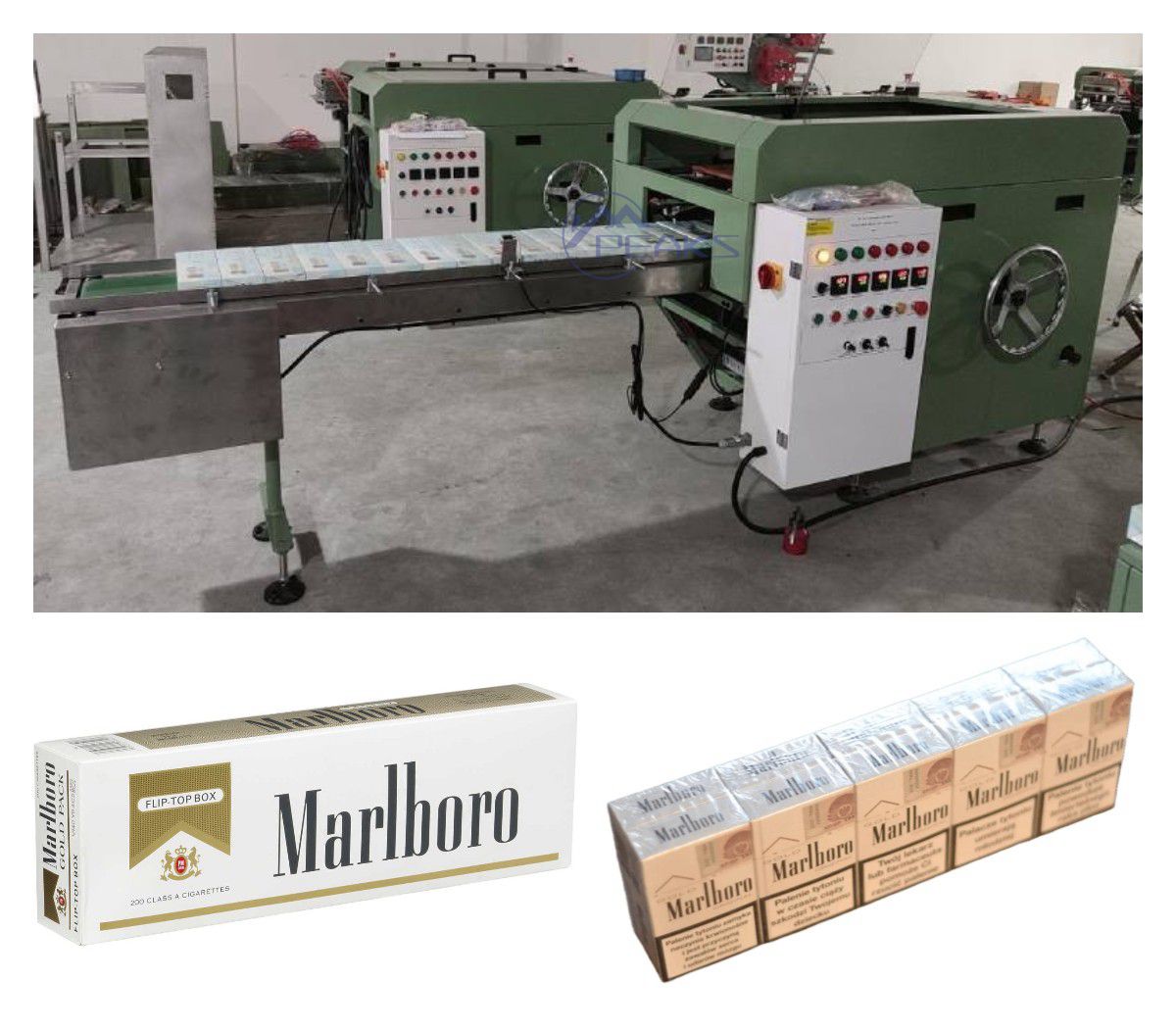

TMB-5 transparent film packaging machine is suitable for packaging box with transparent film. The model finish feeding, packing, sealing, removing wrinkle treatment automatically, and make the packaged goods fully sealed, moisture-proof, anti pollution.
This machine is suitable for pharmaceutical, health care products, food, cosmetics, pokers and other industries.
2. Features:
– Save material;
– Very good sealing technology, make beautiful high end package, well wrapped, moisture-proof.
– Easy tearing line anti-counterfeiting technology.
– Equipment meet highest standard of GMP.
– Most reliable machine, bear long term continuous operation.
3. Parameter list:
| Item | Parameter |
| Packing speed (packs / min) | 20-30package/min |
| Packing range (L×W×H) (mm) | length*width (350~60) (200~40) * (125~15)(mm) |
| Package material | BOPP or PVC |
| Film thickness | 0.021~0.028mm |
| Paper core tube diamater | Φ75 |
| Air pressure (Mpa) | ≥0.4 |
| Sealing temperature | 100~140℃ |
| Power supply | 380V 50Hz 2.7KW |
| Outline dimension (mm) (L×W×H) | Approx 2130×927×1160mm |
| Weight (kg) | Approx 800kgs |
