Introduction
1. Features:

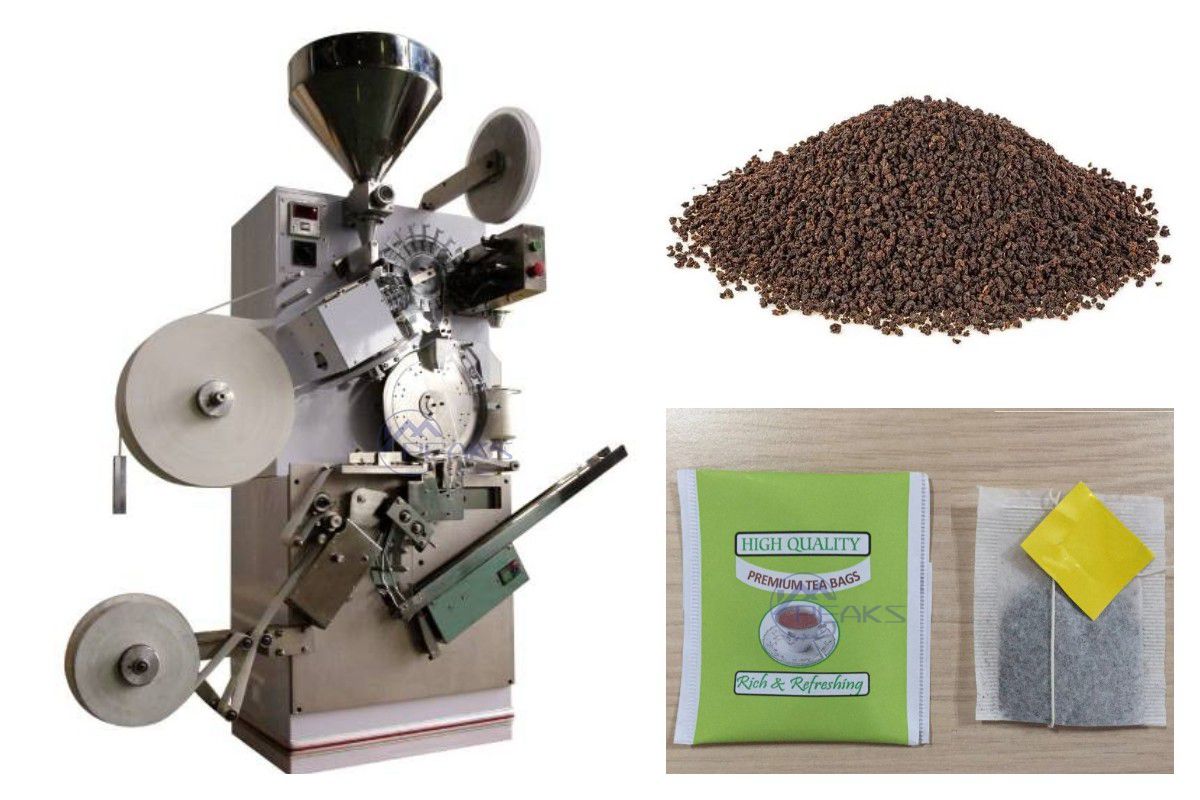

Tea bag packing machine CCFD6 is our very mature model high speed teabag packing machine, it finish all the working of weighing, filling, filter bag heat sealing, threading, labeling and outer bag cold sealing full automatically. The machine adopt unique dosing system, able to finish weighting tea very accurate and at very high speed. The machine can be used in large tea plant, working at very high efficiency.
2. Parameter:
| Model | CCFD6 |
| Output | up to 110 bags/minute |
| Max. dosage | 8cm³ |
| Inner bag dimensions | 62.5 x 50 mm |
| Outer bag dimensions | 70 X 65mm |
| Tag dimensions | 28 x 24 mm |
| Thread length | 210mm |
| Power supply | 220V/380V, 1.5kw |
| Weight | 565kg |
| Gross Weight | Approx 800kg |
| Package dimensions | Approx 1250*1050*1900mm |
3. Packing Material Consumping:

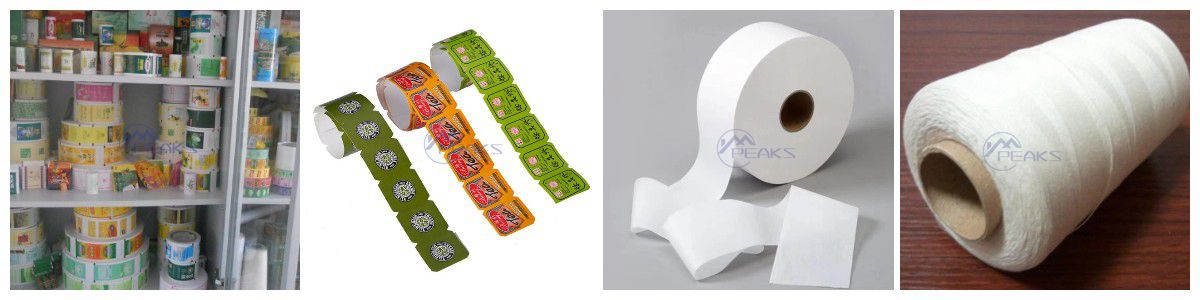

The daily comsumping packing material including outer envelop paper, tag paper, heat sealing tea filter paper and cotton thread, in which the outer bag film roll and tag paper roll usually need customer printing, we can provide all these packaging material with competitive price. They will match with our high speed teabag packaging machine and work very well.
3. Other Packing Machines from us:
– tea bag packing machine( inner and outer filter paper tea bag packing machine, pyramid tea bag packing machine, double chamber tea bag packing machine etc, for green tea, black tea, leaf tea, herbal tea, fruit tea, mint tea, rose bud, lemo clips etc)
– granule packing machine (for sugar, rice, instant coffee, seeds, beans, chips, biscuit, candy, pet food and etc),
– powder packing machine (for wheat flour, milk powder, corn starch, protein powder, medicine powder etc)
– paste and liquid packing machine (for tomato ketchup, chili paste, fruit jam, honey, alcohol, beverage, mineral water and etc)
