Introduction
1. Introduction：

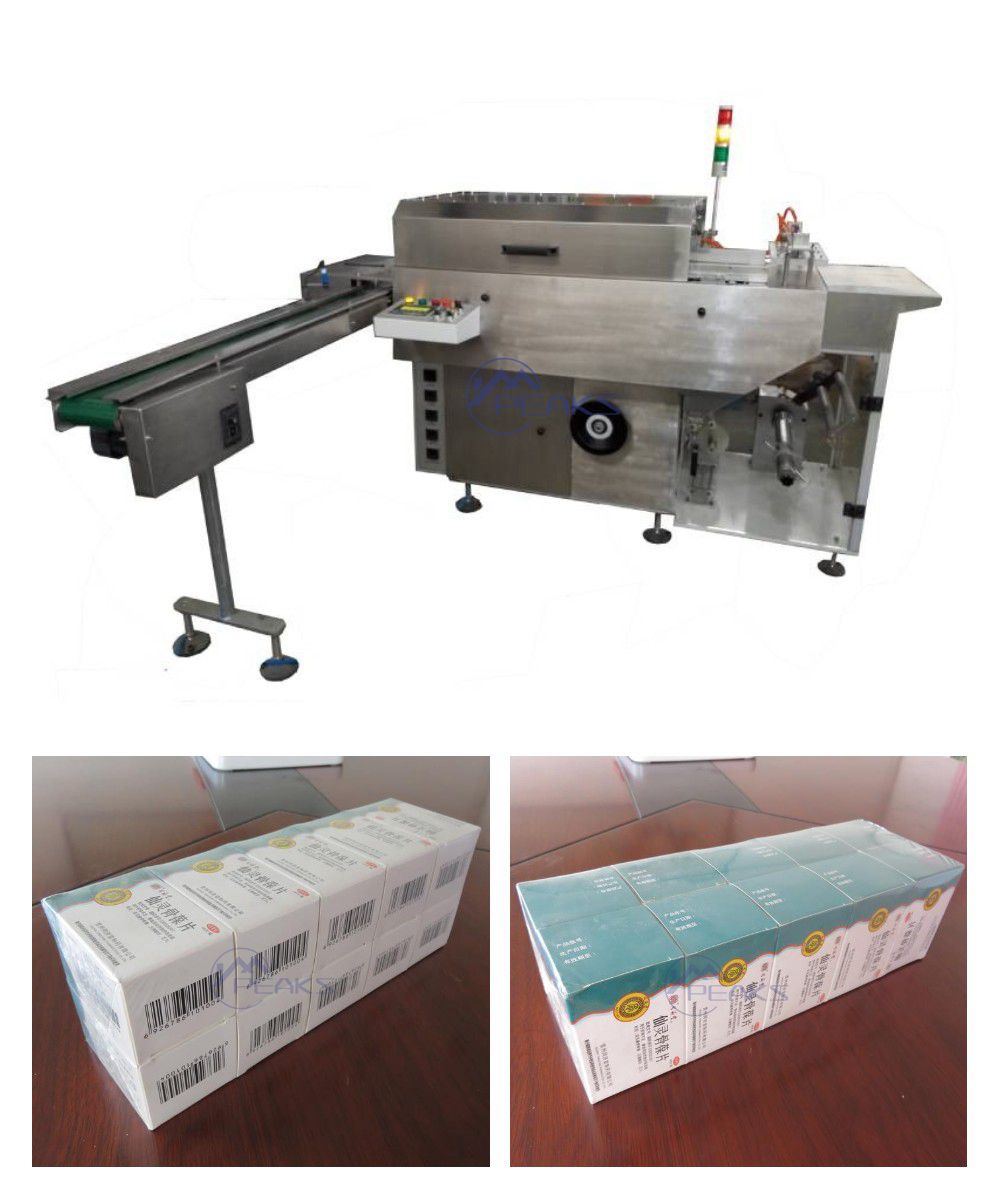

This machine is a multi-purpose automatic transparent paper packaging machine, packagingproducts with different specifications. Mainly by the frame body, mechanical drive system, electric control system, pneumatic system, and a small box stacked packing, transportation, transparent paper, folding, heat sealing, etc. To the main applicable to tobacco, pharmaceutical and food industries of transparent paper packaging.
The machine electrical control system logic relation strictly, mechanical transmission system stability, automation degree high, security and complete, reliable performance, operation, adjustment and maintenance convenient.
2. Parameter List:
| Model | TMB-3B |
| Packaging specifications | (350~60) *(200~40) * (125~15)(mm) |
| Packing speed | (20 ~ 30) in box / minutes |
| Packing film | PVC or BOPP |
| Roll film paper tube dia | Φ75mm |
| Film thickness | 0.021~0.028mm |
| Sealing temperature | 100~140℃ |
| Power source | 380V, 3Phase, 50Hz, 2.7KW |
| Integrated noise | ＜69dB(A) |
| Size | 2130×927×1160mm |
| Weight | approx 600kgs |
3. Wrapping method:
This cellophane box wrapping machine is used for packing multi box with clear plastic film, it can be 2*5 loading and wrapping full automatically. The plasticc film usually BOPP film, you can choose to add easy tearing line also.
4. Usage:
This clear film box packaging machine can be used to wrap cigarette box, medicine box, cosmetic box, lipstick, perfume, poker box and etc.
