Introduction
1. Introduction:

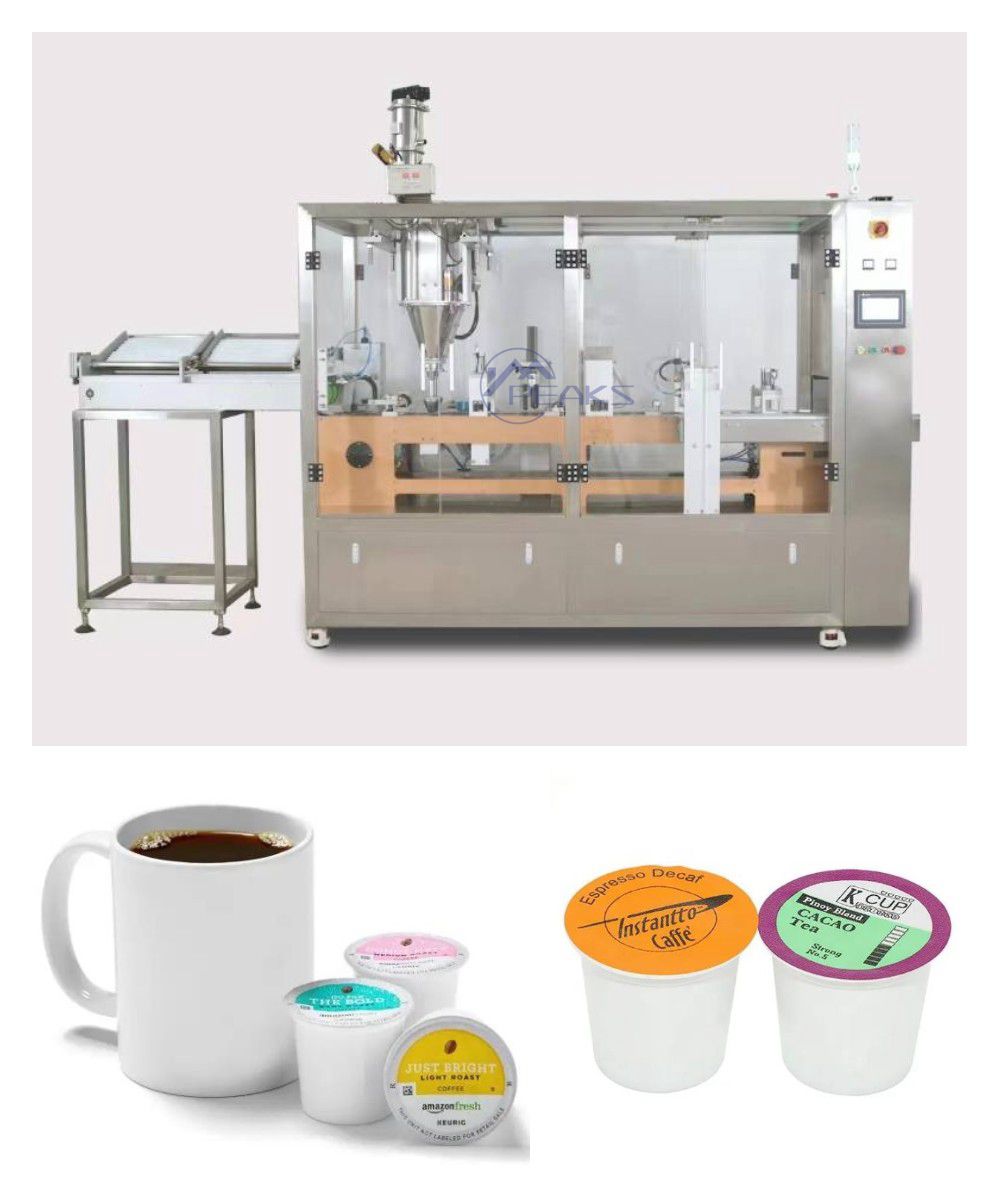

CF50 is a full-automatic coffee capsule filling sealing packing machine. It can produce different size capsules. Equipped with the most advanced technology and leading-edge performance with many unique technology.
The speed 35-50 cups per minute. It wins high reputations from domestic and international customers.
2. Features:
2.1 Compact size and smart function, cup size can be customized.
2.2 Adopt famous electric parts, quality is guaranteed, Delta PLC and frequency converter, Delta servo motor, Schneider buttons and breakers, Omron relay and sensors etc.
2.3 Servo motor driving screw feeding, accurate and high speed.
English interface, with color touch screen, easy to change parameter and maintain.
2.4 All the function finished on the machine automatically, auto grabing cups, servo screw feeding, vacuum cleaning dust, placing film, film checking, heat sealing full automatically.
Parameter List:
| Model | CF50, single lane model |
| Product | Coffee powder |
| Output | 30-50cups/min |
| Filling method | Servo motor driving auger |
| Filling volume | 3g other size can be customized. |
| Filling accuracy | ±0.1g |
| Power supply | 220V 50/60HZ 1.5KW |
| Air source | ≥0.8M3/min |
| Machine weight | 800Kg |
| Sealing film | Single piece film |
