Introduction

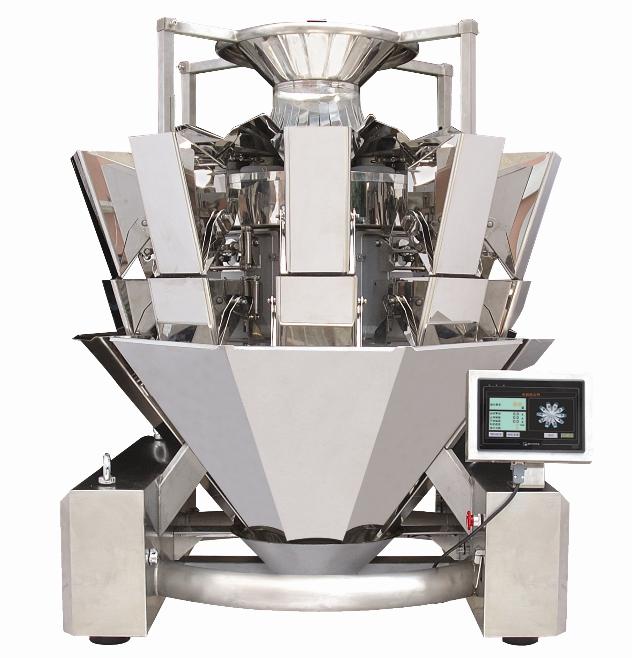

Picture:
Features:
It is suitable for high speed weighing of granule, slice, roll or irregular shape products such as candy, rice, seed, jelly, coffee bean, peanut, puffy food, biscuit, candy, chocolate, nut, yogurt, pet food & frozen foods, etc. It is also suitable for weighing small metal and plastic parts.
There are 10 heads weigher and 14 heads weigher optional, with different weigher volume and differenct weighing speed, clients can choose weigher according to his needs and buddget.
This electric weigher work with vertical granule packing machine, it will finish weighing and filling into bag former of vertical packing machine. The weighing speed can be 20-100times/min, higher speed weigher can be customized.
Parameter List:
| Weigh Ranger | 5-1000g |
| Accuracy | 0.2-1g |
| Max Speed | 65wpm |
| Weigh Volume | 1.3L/1.6L |
| Hopper No | 10 |
| Control Panel | 7 inch touch screen |
| Driving system | stepper motor |
| Material | SUS 304 |
| Power supply | AC 110/220, 50/60 Hz |
| Power | 1.0 kw |
| Reference carton size | 1620×1100×1100mm |
| Weight | 360 kg |
