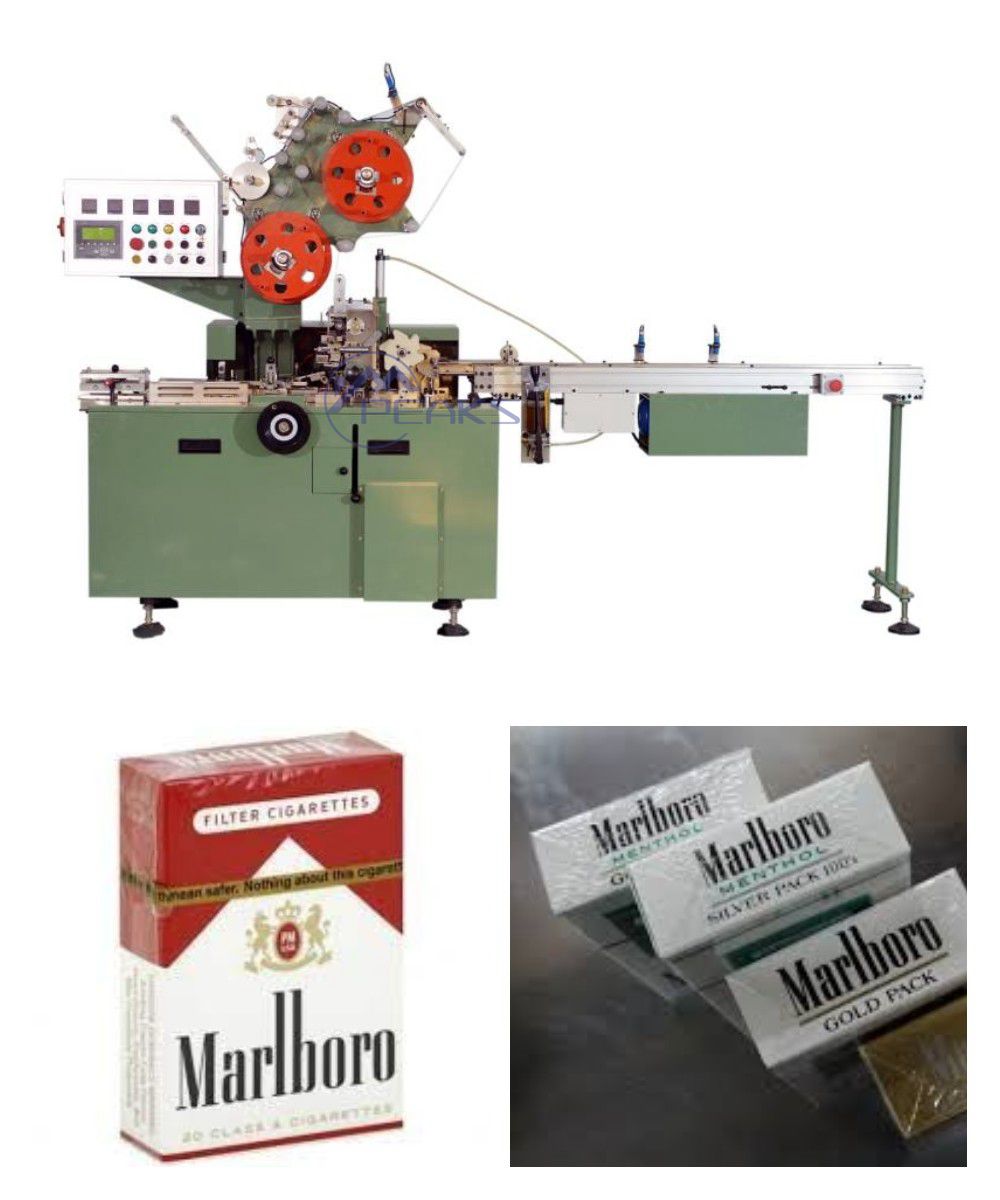

Cigarette Box Wrapping Machine
TMB-2 is our high speed box wrapping machine, speed up to 180boxes/min. It wraps clear BOPP film outside the box, this machine can be used to pack cigarette box, tobacco box, medicine box, cosmetic perfume box, poker card box, tea box etc. This is high speed model, it can be connected with cigarette rolling machine.
Introduction
1. Introduction:
TMB-2 three-dimensional transparent film packaging machine is our high speed cigarette box packing machine, adopting stepless speed changing technology, the packing speed is 40-200 packages / min, and each performance index has reached the international first-class level.
Suitable for pharmaceutical, health care products, food, cosmetics, playing cards, cigarette, tobacco and other industries.
2. Features:
– Save Material;
– Easy Tearing line anti-counterfeiting technology.
– Equipment meet highest standard of GMP.
– Most reliable machine, bear long term continuous operation.
3. Parameter list:
| Item | Parameter |
| Packing speed（packages / min） | up to 200package/min |
| Package material | BOPP or PVC |
| Packing range（mm）（L×W×H） | （70-150）×（42-85）×（8-40） |
| Air pressure（Mpa） | ≥0.4 |
| Power Supply | 380V 50Hz 3.6KW |
| Outline dimension(mm)（L×W×H） | Approx 2600×900×1680 |
| Weight（kg） | Approx 900kgs |
