Automatic Japanese pour over coffee pouch packing machine
This is our single servo coffee pouch packing machine, it is used for making japanese pour over coffee pouch full automatically, this machine makes inner drip coffee bag with paper hanger. The machine adopt ultrasonic sealing, weighing by screw auger, controlled by PLC, and makes 3 side sealing drip coffee pouch full automatically.
Introduction
Introduction:
This is our single servo coffee pouch packing machine, it is used for making japanese pour over coffee pouch full automatically, this machine makes inner drip coffee bag with paper hanger. The machine adopt ultrasonic sealing, weighing by screw auger, controlled by PLC, and makes 3 side sealing drip coffee pouch full automatically.
We have other model drip coffee packing machine which able to make outer aluminium plastic envelop bag also.
Parameter List:
| Model | DCN60 |
| Working Speed | 60 bags/min |
| Filling Range | 5~15grams |
| Weighing System | Auger |
| Bag Size (Inner) | W 50-75mm, L 50-100mm (Customizable) |
| Bag Size (Outer) | W 75-110mm, L 85-135mm (Customizable) |
| Packing Material | Non-woven, Nylon, PLA, all ultrasonic sealing materials |
| Sealing Method | Fully 3-sides ultrasonic sealing |
| Film Width | 8-12 g/bag ( based on the materia’s proportion ) |
| Air Comsumpion | 0.6MPa, 0.3m³/min (Air compressor to be prepared by client) |
| Power | 220V Single phase 50/60Hz |
| Weight | 300kg |
| Overall Denmensions | L1130 * W830 * H1800mm |
Packing material:
Drip coffee bags roll, it is food grade non woven material with paper hanger attached in the roll. The roll size 180mm width * 74mm length, other size can be customized.

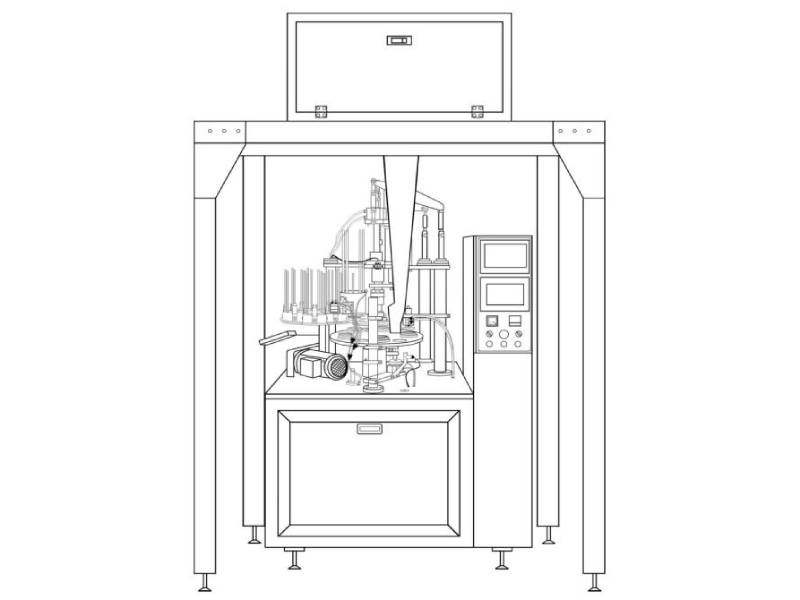

Machine picture:
