Nitrogen Generator for Drip Coffee Packing Machine

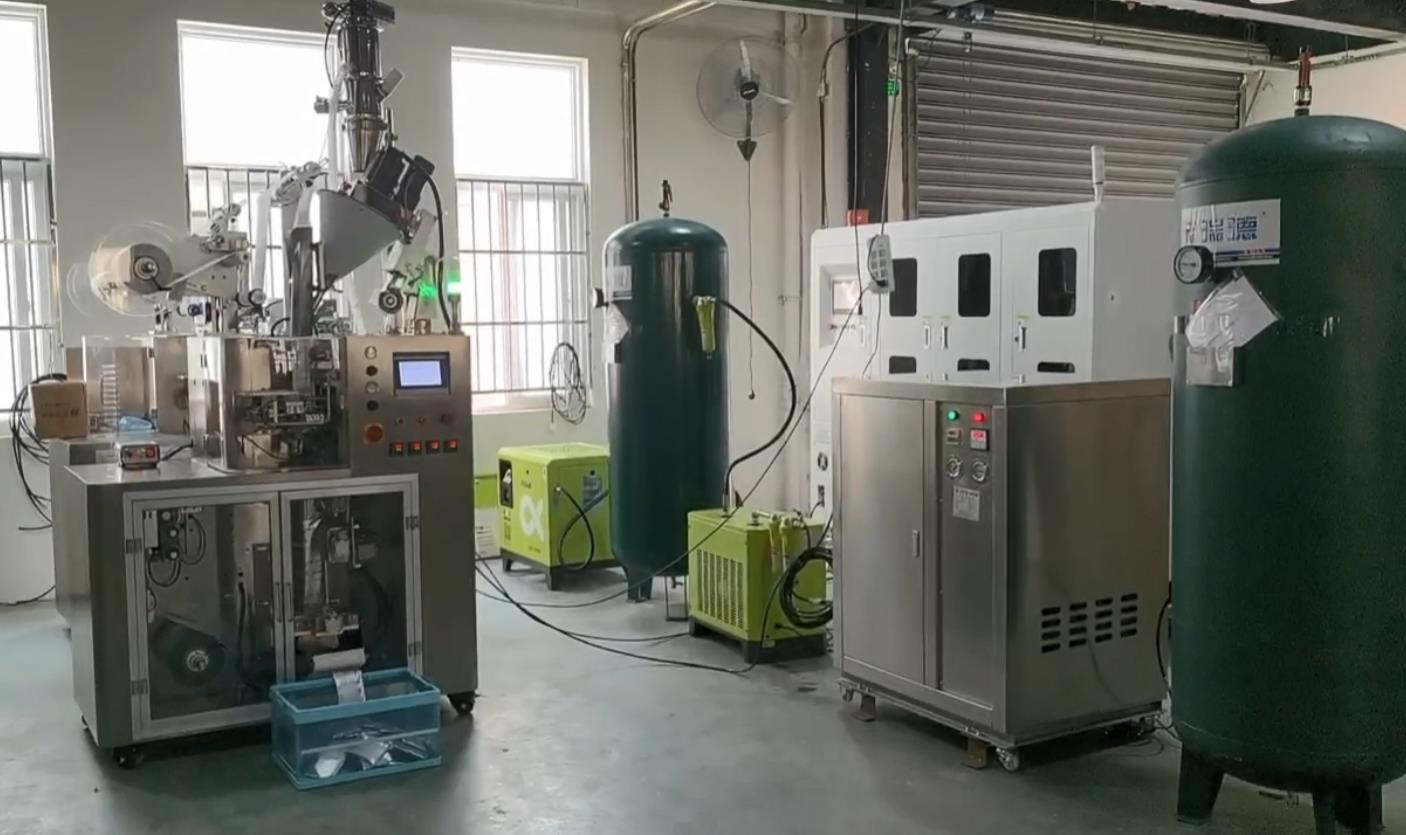

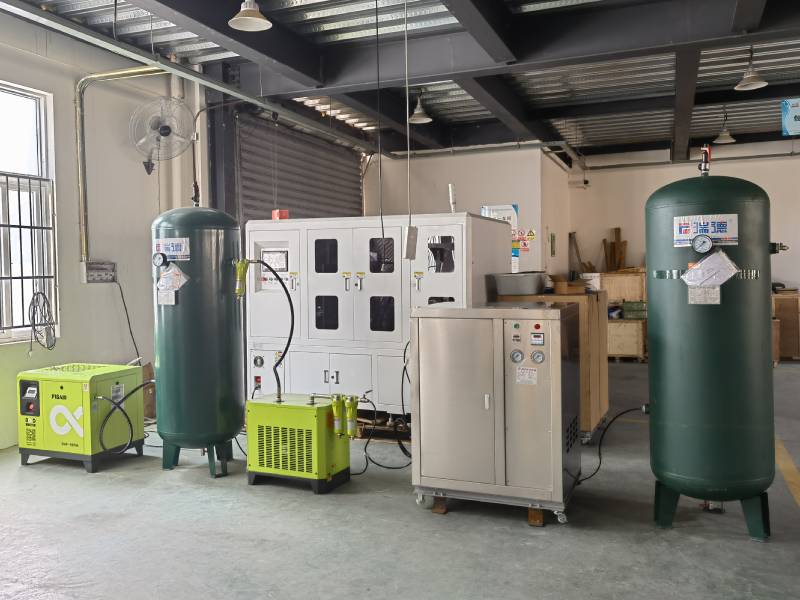

This is Nitrogen generator, it create Nitrogen gas with high purify, this generating system contains screw air compressor, cold dryer, Nitrogen generator and air tank. The high purify reach 99.5-99.9%, it meets demands of food industry, so it can be connected with drip coffee bag packing machine, potato chips packing machine, milk powder packing machine, popcorn packing machine, biscuit packing machine and etc.
Introduction
1. Introduction:
This is Nitrogen generator, it create Nitrogen gas with high purify, this generating system contains screw air compressor, cold dryer, Nitrogen generator and air tank. The high purify reach 99.5-99.9%, it meets demands of food industry, so it can be connected with drip coffee bag packing machine, potato chips packing machine, milk powder packing machine, popcorn packing machine, biscuit packing machine and etc.
2. Parameters:
2.1 Parameter for screw air compressor.
| Technical specifications | Descriptions |
| Capacity | 1.2 M3/min |
| Discharge Pressure | 0.8 Mpa |
| Amblent temperature | -5~+40℃ |
| Cooling Mode | air cooling |
| Discharge temperature | ≦ Environment temperature +10℃ |
| Lubricant | 6 Liter |
| Noise | 66 ± 2 dB (A) |
| Voltage | 380V, 3ph, 50/60Hz |
| Motor Power | 7.5 KW |
| Dimension & Weight | 960*650*920 mm & 180 kg |
| Air Outler Pipe Diameter | ZG1/2 inch |
2.2 Parameter for Nitrogen generator:
| Technical specifications | Descriptions |
| Nitrogen Capacity | 3Nm³/h |
| Nitrogen Purity | 99.5~99.9% |
| Dew Point | ≤-10℃ |
| Working Pressure | 0.6~0.8 Mpa |
| Weight | 200 Kg |
| Power | 0.5 KW |
| Voltage | 220V, Single Phase, 50Hz |
| Generator Dimension | 940 * 760 * 1250 mm |
